Isomass Monodeck 32T 2400mm x 600mm x 32mm
The Monodeck 32T acoustic floor systems are designed to reduce impact sound transmission through a timber joisted floor where both the floorboards and the ceiling have been removed.

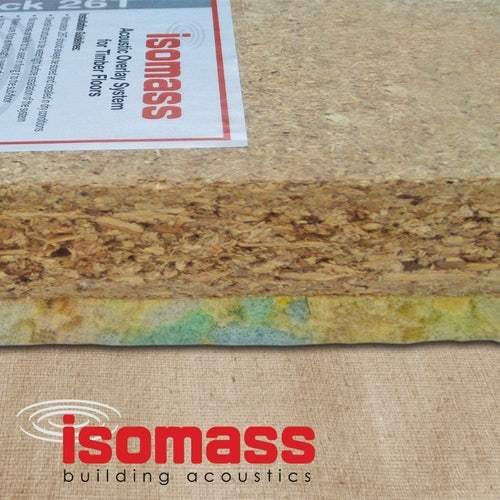

Monodeck 32T consists of a layer of 10mm reconstituted ACF (Acoustic Chip Foam) bonded to 22mm V313 P5 moisture resistant chipboard. Monodeck 37T consists of a layer of 15mm reconstituted ACF (Acoustic Chip Foam) bonded to 22mm V313 P5 moisture resistant chipboard.
When installed as part of an Isomass approved separating floor construction, it enables a timber floor to meet the sound transmission regulations of Approved Document E 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.
L2400 x W600 x D32mm
Cover: 1.44m2
Resilient layer material: Reconstituted ACF (Acoustic Chip Foam)
-

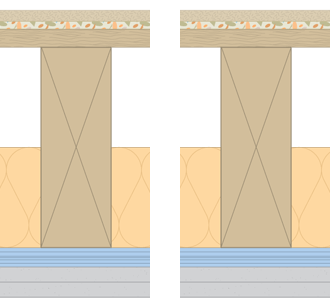

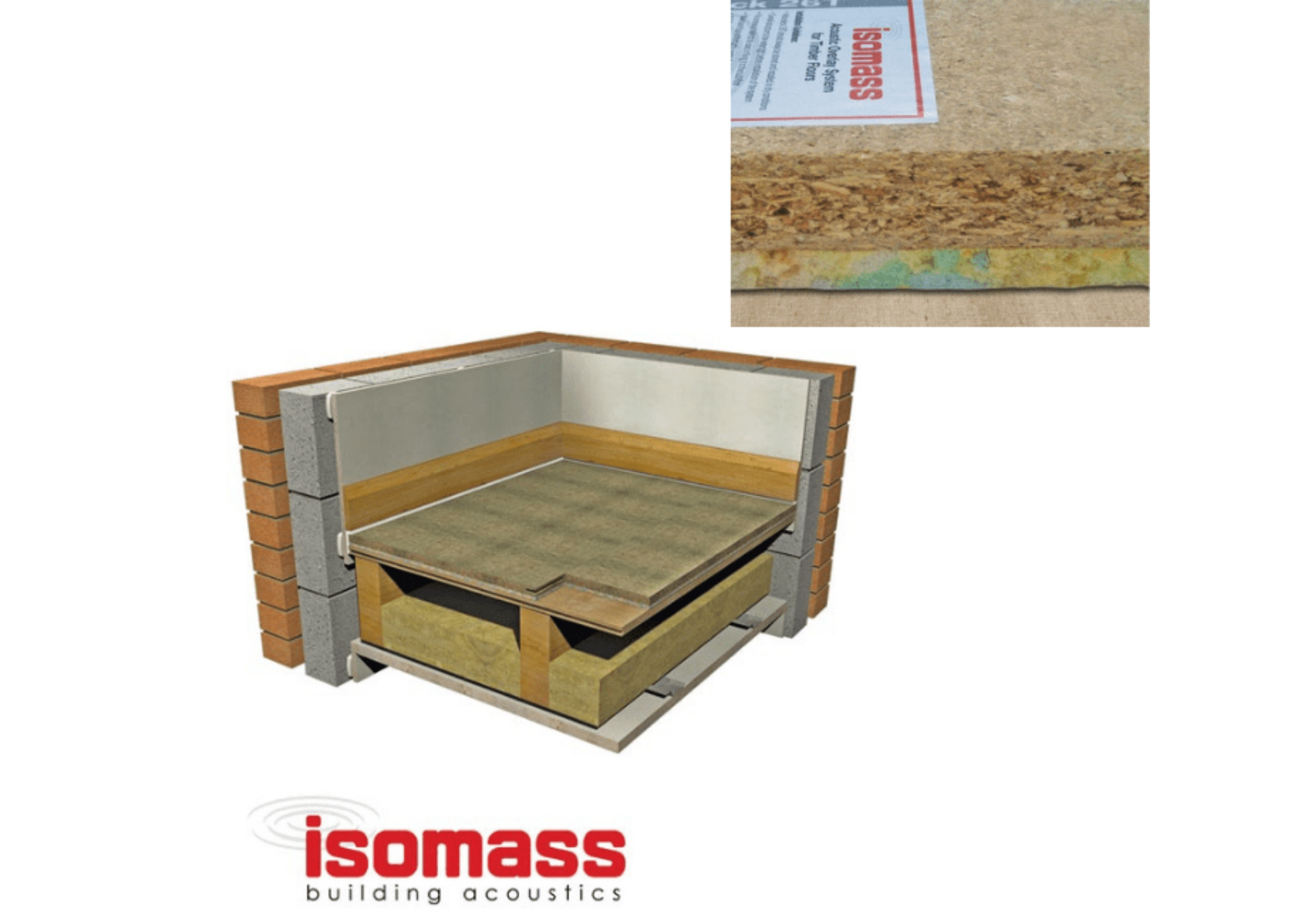

Monodeck 30T system on existing timber floor (subject to condition) or a new 18mm chipboard deck.
-
200mm x 50mm timber joists@ max. 450mm centres.
-
100mm 45kg/m3 insulation between joists.
-
20kg/m2 double boarded ceiling on resilient bars @400mm centres perpendicular to joist direction.
-
Acoustic flanking band reduces impact vibration leaking via structural walls and assists in reducing airborne sound paths.
Data Sheet - Click Here
