EPS150 Jablite High Performance Plus + Floor Insulation 2400 x 1200mm

EPS150 Jablite High Performance Plus Insulation - 2400 x 1200mm

EPS Grey has approximately 20% better insulation capacity than white EPS. This makes it possible to insulate roofs, floors, walls etc with thinner boards and achieve the same performance as with thicker regular EPS insulation.

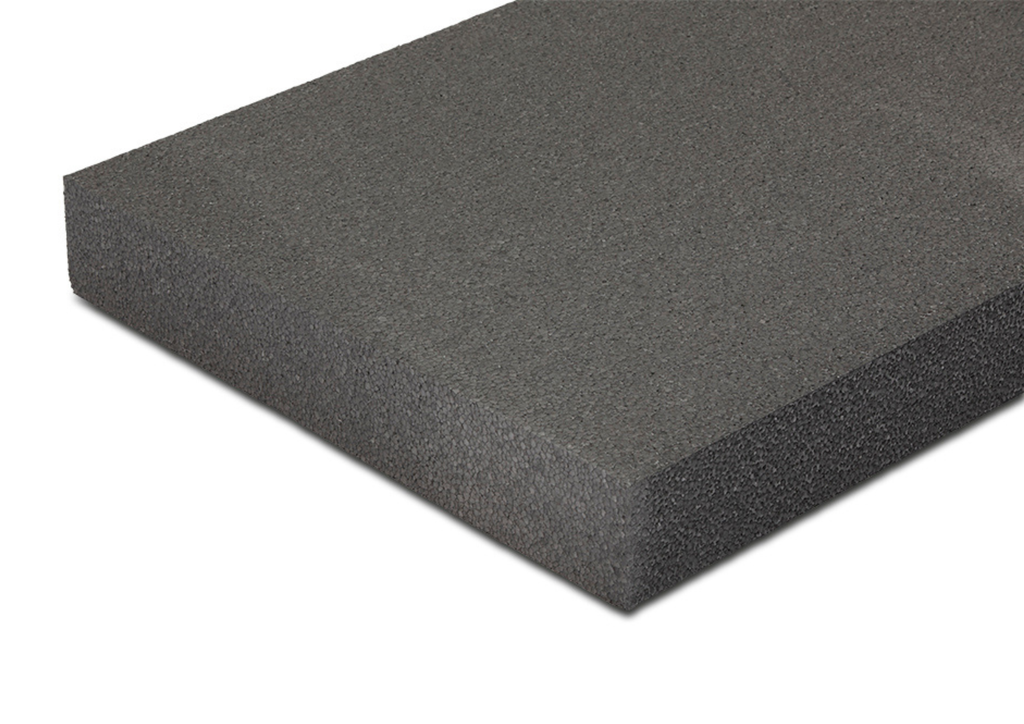

Jablite high performance plus is a closed cell expanded polystyrene (EPS) insulation board suitable for use in all floor constructions. It is an excellent insulating medium which exhibits consistent thermal performance over the range of temperatures normally encountered in buildings.

Jablite HP (High Performance +) offers a more thermally efficient insulant to achieve lower U-values with a thinner board. It is a dark grey in colour making it easy to distinguish from its sister product Jablite which is white.

Jablite HP + is grey in colour due to the carbon additive which acts within the boards to disperse and reflect heat radiation. This gives the boards an improvement in thermal performance compared to white EPS.

The material is versatile, light in weight, clean and easy to handle, and provides a cost-effective means of including permanent insulation in floors, walls and roofs to meet, and exceed, the standards laid down in the Building Regulations.

EPS15 Jablite HP Plus Insulation - 2400 x 1200

Thermal conductivity: 0.030 W/mK.

Certification: BBA certified.

Jablite HP is a BBA-certified floor insulation that achieves the required U-value and compressive performance on a range of different floor applications:

• Below ground supported slab

• Above slab below chipboard

• Above slab below screed

• Precast suspended concrete

• Cold Store

• BBA accredited, certificate 87/1796.

• Provides cost effective insulation for the lifetime of the building

• Excellent compression properties

• 100% recyclable

• Achieves an A+ rating in the BRE Green Guide to Specification

• Available with Class E fire retardant additive

• Flood proof

• Lightweight and easy to handle

• Is non-toxic and biologically inert

A range of compressive strengths are available to suit all building types from domestic to industrial.

Jablite HP should be tightly butted against the perimeter walls and insulation strip should be used on all exposed edges. An expansion gap may be necessary around the edge of the floor finish in screed or particleboard overlay.

Jablite HP is manufactured from expanded polystyrene (EPS) which is lightweight and easy to handle on site.

Jablite HP can be used in temperatures up to 80°C. It is therefore suitable for use with underfloor heating systems

Approved by BBA as Jablite Floor Insulation - Certificate number 87/1796

Insulation Guide - Click Here

Product Technical Data PDF - Click Here

Enter the width(m) and length(m) of your project below:
