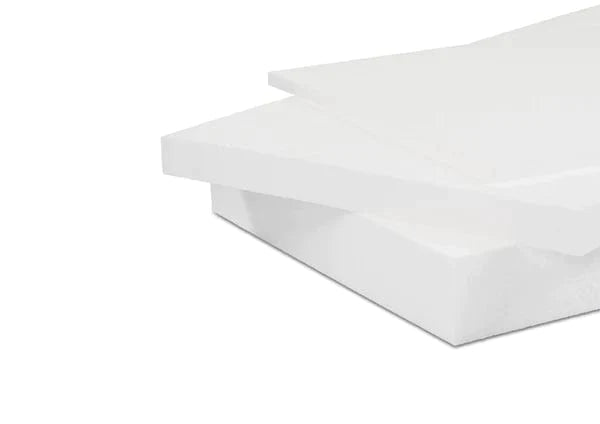

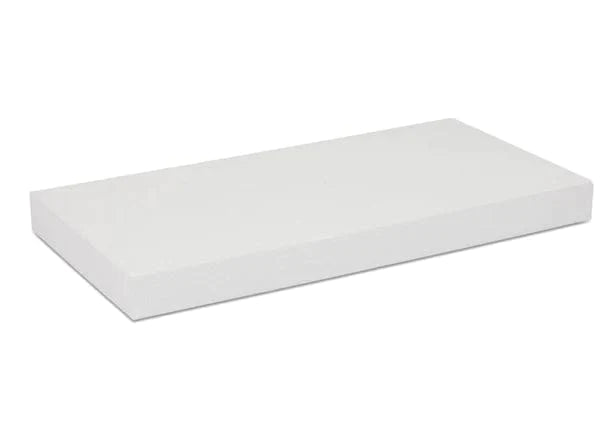

Jablite EPS Insulation Board Single Sheets | 2400mm x 1200mm

JabliteSKU: BM01973
No reviews

Price:
Sale price£4.76

inc VAT

Pay in 3 prices shown are an example only. Total calculated at checkout.

Delivery within 2-5 working days

Free Delivery On Orders
Over £499.95 Ex-Vat

Need something quicker?

Contact us on 0300 303 4578
or email here!

Jabfloor is a closed cell expanded polystyrene (EPS) insulation board suitable for use in all floor constructions. It is an excellent insulating medium which exhibits consistent thermal performance over the range of temperatures normally encountered in buildings.

The material is versatile, light in weight, clean and easy to handle, and provides a cost-effective means of including permanent insulation in floors, walls and roofs to meet, and exceed, the standards laid down in the Building Regulations.

Thermal conductivity: 0.038 W/mK.

Jabfloor is a BBA-certified floor insulation that achieves the required U-value and compressive performance on a range of different floor applications:

  • Below ground supported slab
  • Above slab below chipboard
  • Above slab below screed
  • Precast suspended concrete
  • Cold Store
  • BBA accredited, certificate 87/1796.
  • Provides cost effective insulation for the lifetime of the building
  • Excellent compression properties
  • 100% recyclable
  • Achieves an A+ rating in the BRE Green Guide to Specification
  • Available with Class E fire retardant additive
  • Flood proof
  • Lightweight and easy to handle
  • Is non-toxic and biologically inert

A range of compressive strengths are available to suit all building types from domestic to industrial.

Jabfloor should be tightly butted against the perimeter walls and insulation strip should be used on all exposed edges. An expansion gap may be necessary around the edge of the floor finish in screed or particleboard overlay.

Jabfloor is manufactured from expanded polystyrene (EPS) which is lightweight and easy to handle on site.

Jabfloor can be used in temperatures up to 80°C. It is therefore suitable for use with underfloor heating systems

Approved by BBA as Jablite Floor Insulation - Certificate number 87/1796

The Jablite Jabfloor insulation range is available in Grade EPS70, EPS100, EPS150, EPS200 and EPS250 grades as defined by BS EN13163.

As a quick reference, the following guidance about use and design loads applies:

Jablite Jabfloor EPS70 is used for standard domestic loads

Jablite Jabfloor EPS100 is used in offices and schools.


COMPRESSION PERFORMANCE

Grade (EPS) 70 100 150 200 250
Nominal Density (Kg/m3) 15 20 25 31 34
Compressive Strength 1%  (kN/m2) 20 45 70 90 100
Compressive Strength 10% (kN/m2) 70 100 150 200 250
Shear Strength (kN/m2) 55  75 100 200 250
Shear Modulus (kN/m2)  2100 2800 3400 4100 4800


Accreditation Certificates - Click Here

Product Technical Data PDF - Click Here
