Recticel General Purpose PIR Insulation 2400 x 1200mm (All Sizes)
Manuals & Info Sheets

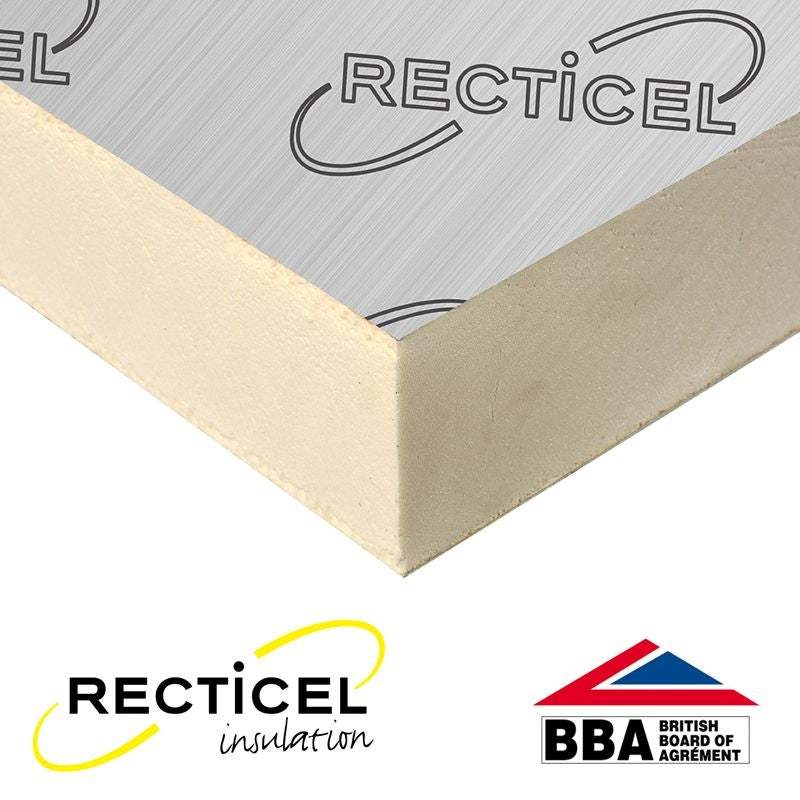

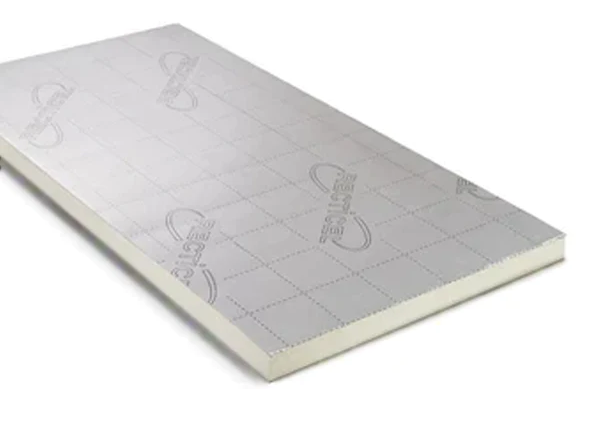

Recticel's Eurothane GP is a premium quality thermal insulation board designed for a variety of applications including Pitched roofs, Framed walls, and Floors. The board is made of rigid polyisocyanurate (PIR) foam and is faced with a gas diffusion-tight multilayer foil on both sides. Its unique grid pattern on both sides ensures optimal installation and usage.
Dimensions: 2400mm (Length) x 1200mm (Width) with thickness ranging from 25mm to 160mm.
Density: ± 30 kg/m³.
Thermal conductivity: 0.022 W/m.K across all thicknesses.
Compressive strength: Varies based on thickness, ensuring optimal strength for your requirements.
Fire Behaviour: Classified as Euro class F according to EN 13501-1 and Class 1 as per BS 476 (part 7).
Environmentally Conscious: Produced under ISO 14001:2015 Environmental management standards.
BBA Certified: Certificate 02/3905 (25-160mm) ensures quality and reliability.
Storage/Handling: Ensure the board is kept dry, away from direct sunlight, and stored clear off the ground. It should be covered with a weatherproof sheet. Wet boards should not be used.
Perfect for the thermal insulation of:
Floors (compatible with underfloor heating systems).
It's essential to note that the packaging isn't suitable for outdoor storage. The boards should be stored off the ground, protected from direct sunlight, and covered with a weatherproof sheet. If the boards get wet, they should not be used.
Q: Can I use the Eurothane GP for underfloor heating systems? A: Yes, the Eurothane GP insulation board is compatible with underfloor heating systems.
Q: What's the thermal conductivity of the Eurothane GP? A: The thermal conductivity for all thicknesses is 0.022 W/m.K.
Q: Where is the Eurothane GP produced? A: It's produced at Recticel's production plant located in Stoke-on-Trent, Staffordshire.
Q: What is the core material of the Eurothane GP insulation board? A: The core material is made up of rigid polyisocyanurate PIR foam.
Q: How should I store these insulation boards? A: Boards should be kept dry, stored clear of the ground, covered with a weatherproof sheet, and protected from direct sunlight. If they get wet, they should not be used.
Note: All technical specifications and details provided above are based on the information provided by Recticel Insulation. Recticel does not accept any liability for clerical errors and might amend the information without prior notice.
Key Points to Remember:
High thermal performance.
Gas diffusion tight multilayer foil.
Grid pattern for efficient installation.
Versatile applications including roofs, walls, and floors.
Adheres to top quality and environmental standards.
