Acustop Acoustic MDF Slimline Overlay Board | 1200 x 600 x 19mm

Twice recycled PET mat laminated to T&G Moisture Resistant MDF.

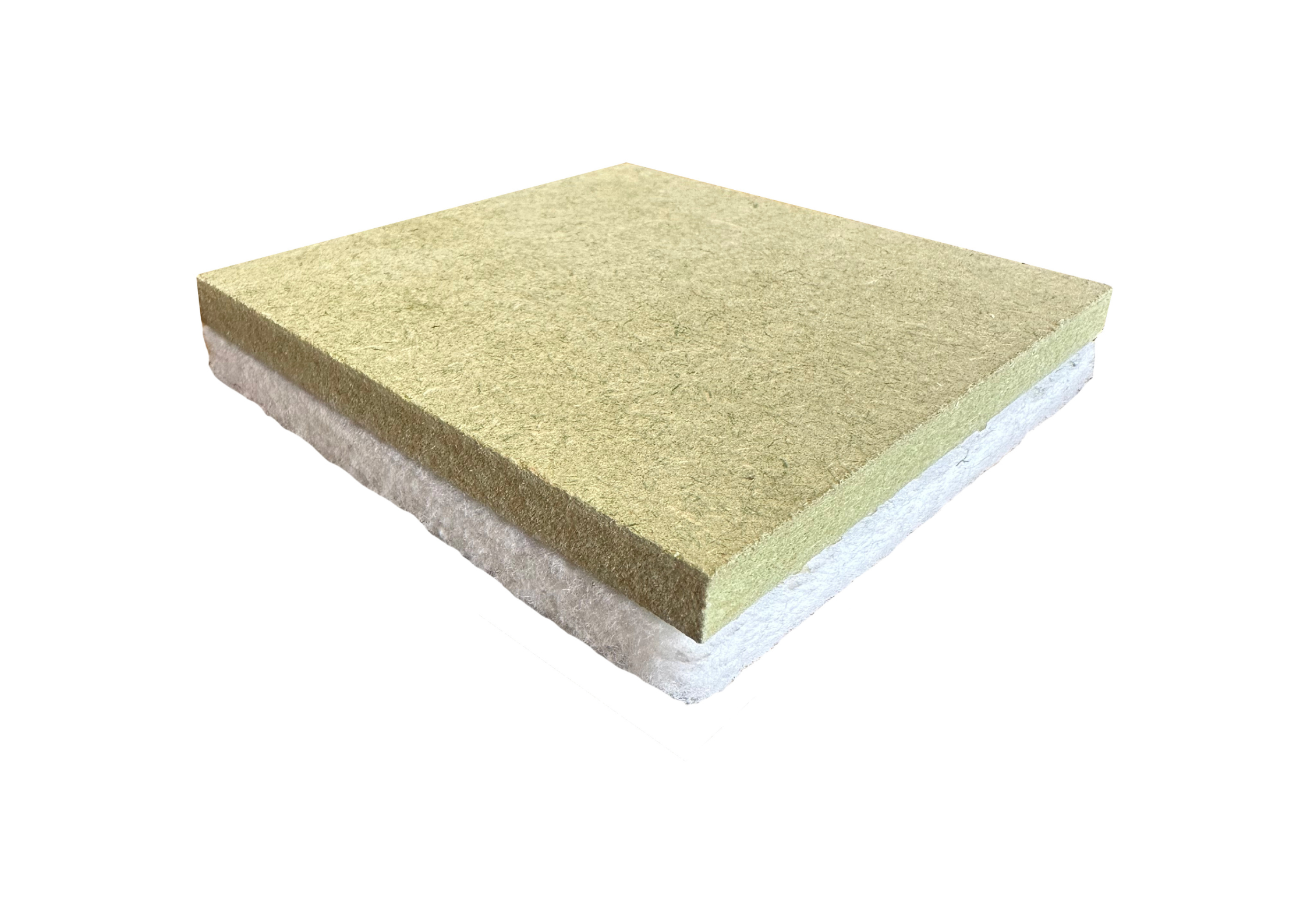

Boards are manufactured of 9mm T&G all sides MR MDF, bonded to a 100% twice recycled 10mm PET mat.

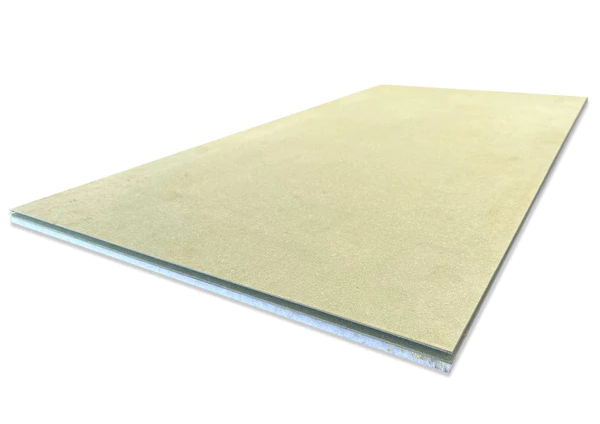

Sheets are supplied in 1200mm x 600mm boards which are 19mm thick, for the acoustic treatment of concrete and timber floors when used in conjunction with a recognised acoustic ceiling treatment.

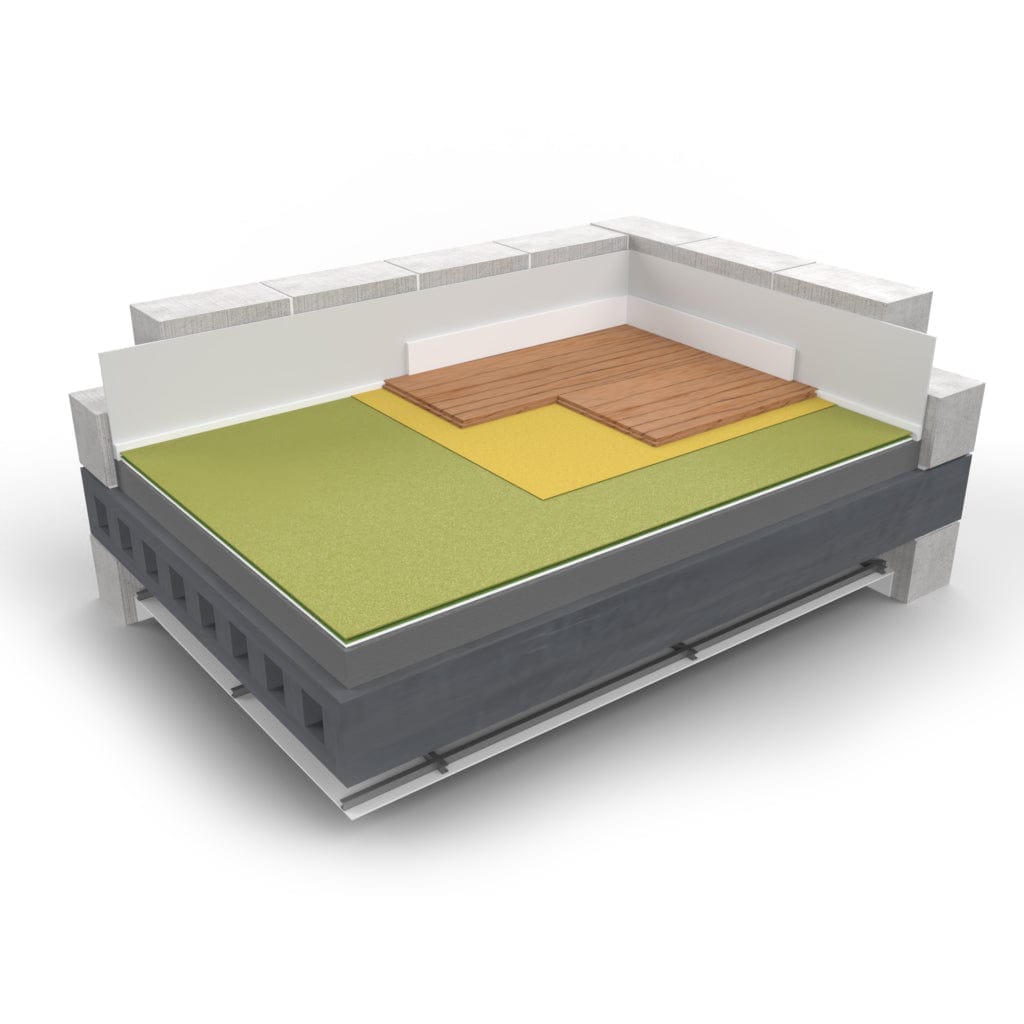

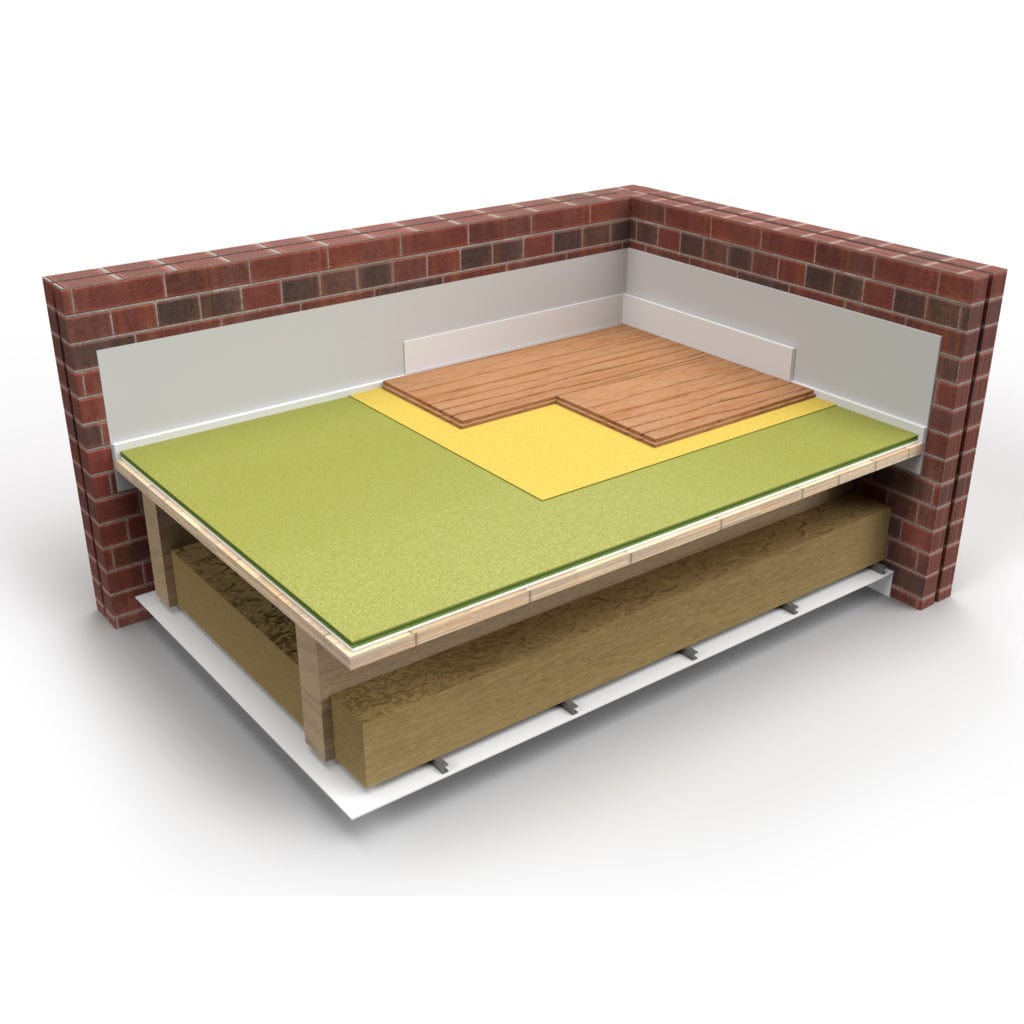

The system can be installed over an existing timber or concrete subfloor fully supported and IS NOT a structurally supporting product and must be installed fully supported.

It is the customers responsibility to ensure that the subfloor can provide the support required. Noggins/additional support must be fitted when required.

Boards are installed as a floating floor system with the requirement of our acoustic perimeter strip to ensure isolation of the boards from the superstructure and skirting boards.

KEY FEATURES

• Very low-profile acoustic flooring solution

• Twice recycled PET Mat

• 7 recycled bottles used for every board

• PET mat considered hypoallergenic

• Extremely low VOCs

• Moisture Resistant MDF

• Hard wearing surface

• Suitable for carpets with underlay

• Suitable for LVT & vinyls

PERFORMANCE

Tekfon Acustop Slimfloor 19 requires that all components are utilised as specified. The ceiling treatment below the subfloor is also vital for the performance of the system.

The Tekfon components are as follows:

• Tekfon Acustop Slimfloor 19

• Tekfon Perimeter Strip

• Tekfon Water Resistant 2 in 1 Adhesive

• Tekfon Acoustic and Intumescent Mastic

The ceiling treatment requires the use of 2 layers of 15mm Acoustic plasterboard fitted onto resilient bars at 400mm centres*. Additionally, a 100mm 60kgm³ slab should be fitted between the joists, or into the ceiling void below the subfloor to complete the treatment. All edges to be sealed with acoustic sealant.

Data Sheet

Click here for Data Sheet
