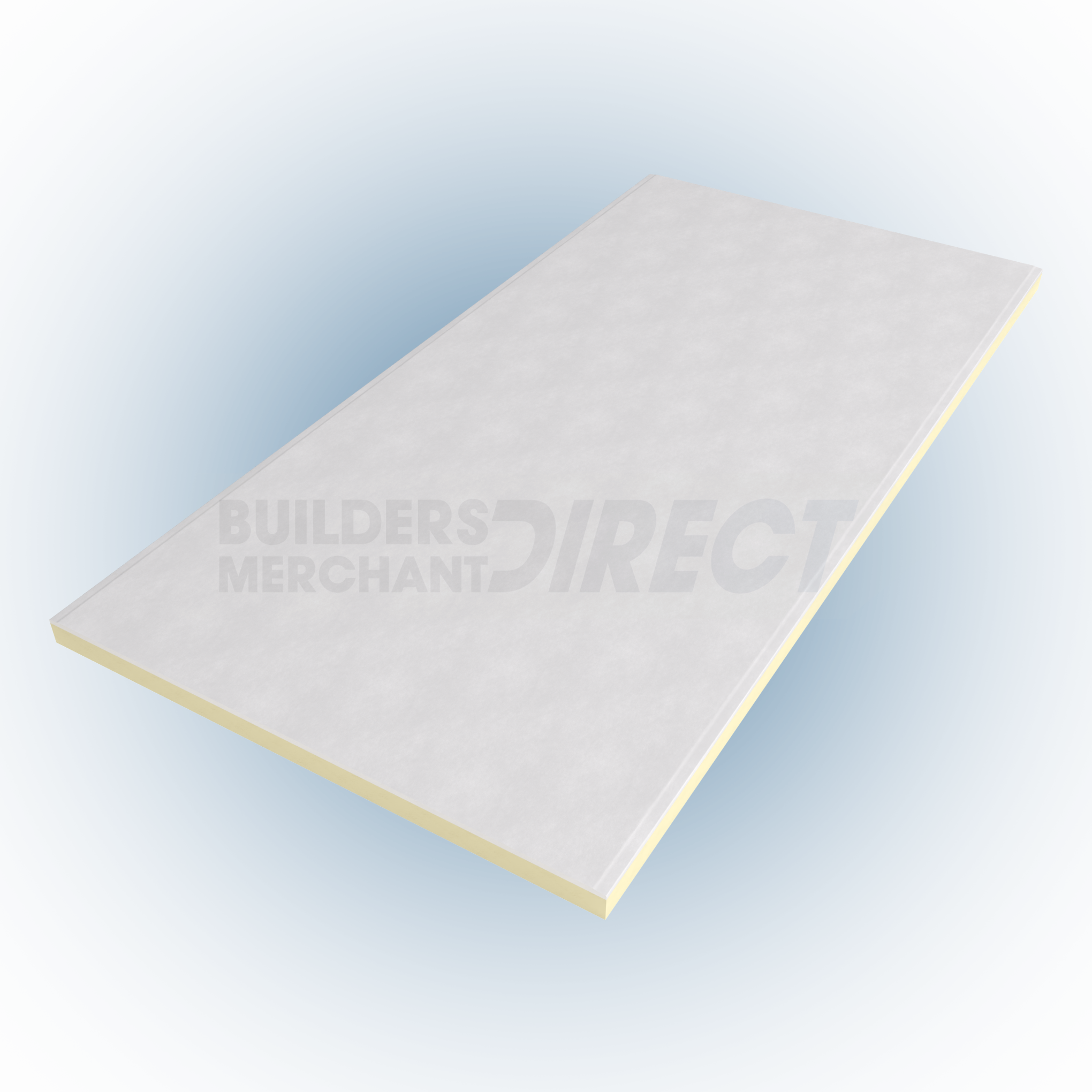

Tekwarm PIR Pitched Roof Insulation Handy Board 1200 x 600mm (Pack of 4)
Manuals & Info Sheets
Introducing the Tekwarm PIR Pitched Roof Insulation Handy Board - your ultimate solution for loft and roof insulation with a plasterboard face for a finished look. At a handy size of 1200 x 600mm, these boards are designed for easy handling through loft hatches, making them a perfect choice for both new builds and conversion projects. By improving the thermal performance of a roof or loft area, they help meet or exceed your specific thermal regulations. With a variety of thicknesses from 37.5mm to 92.5mm, they allow for precise insulation. Get this exceptional product exclusively at the BMD Group.co.uk.

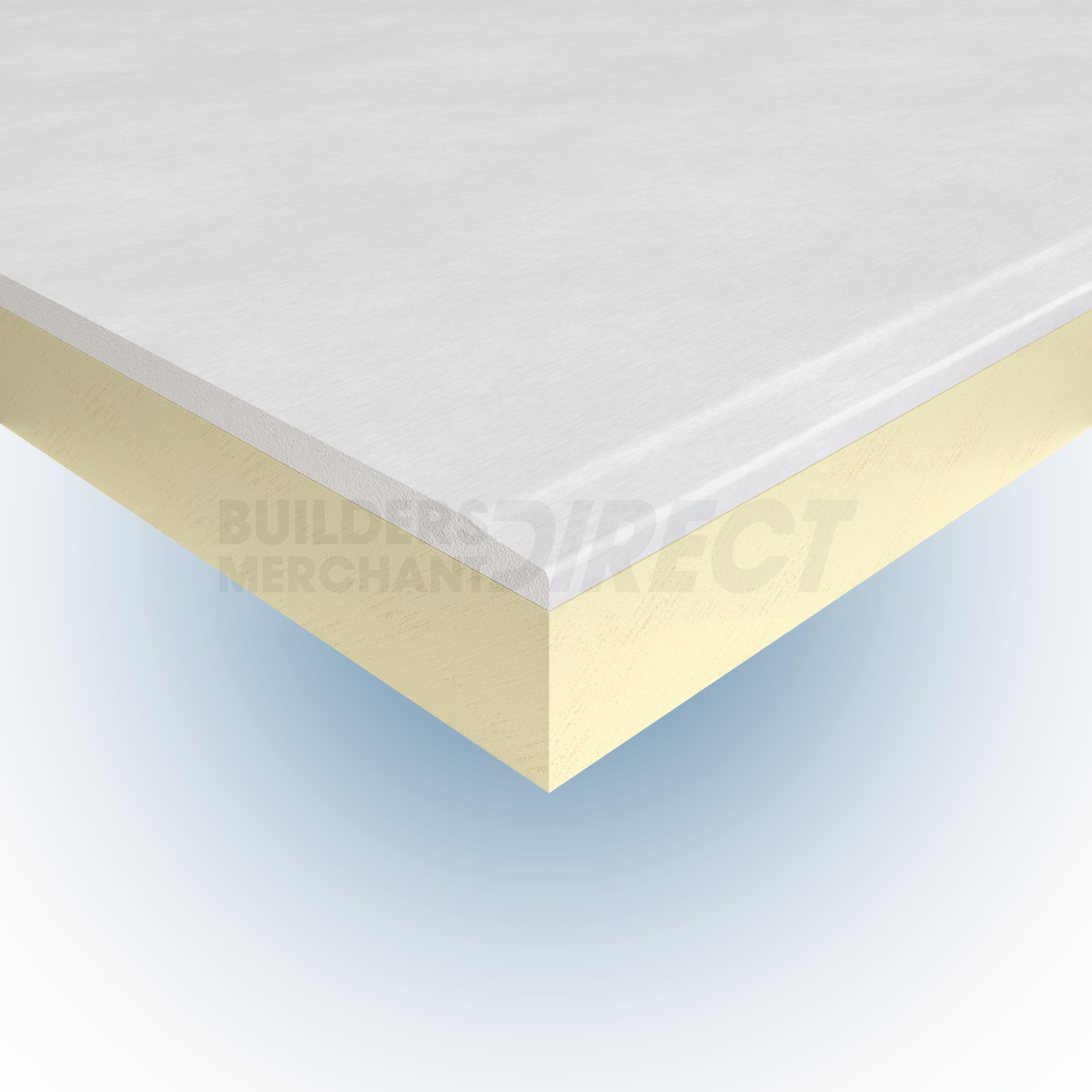

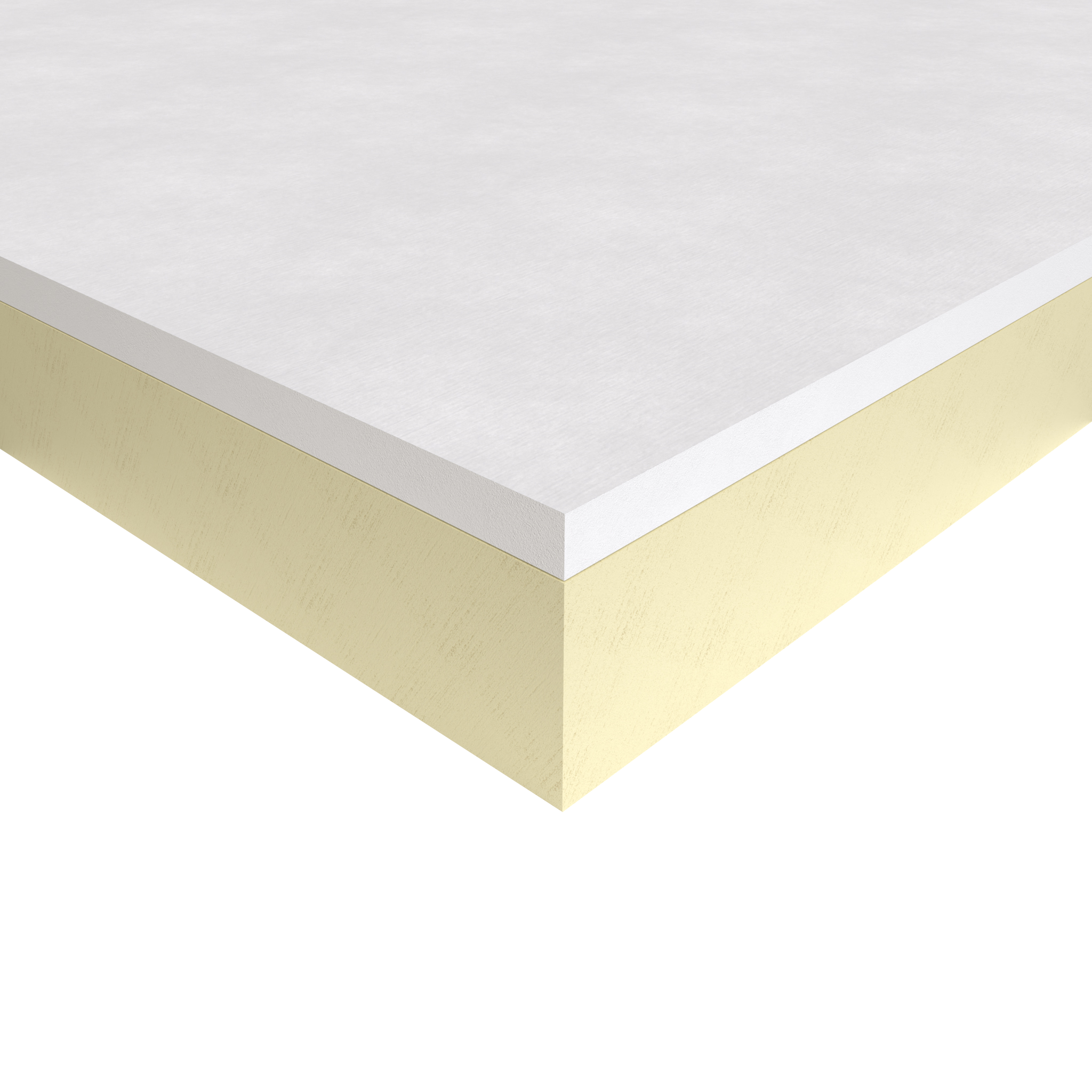

Each Tekwarm PIR Pitched Roof Insulation Handy Board is sized at 1200 x 600mm, offering optimal convenience for loft hatches. The boards come in a selection of thicknesses from 37.5mm to 92.5mm. The boards are engineered with a layer of superior PIR insulation and faced with a high-quality plasterboard for a finished appearance.
With the integrated PIR insulation, the Handy Board provides outstanding thermal performance by significantly reducing heat loss. Ideal for enhancing energy efficiency in new builds or conversion projects, it ensures a more comfortable indoor environment and reduces energy costs.
Fitting and Technical Specifications:
Thanks to their compact size, the Handy Boards are excellent for installation in pitched roofs and loft spaces. The rafters or framework used for support should be constructed at a maximum of 600mm centres. The board edges need to overlap any framework by a minimum of 20mm to ensure adequate support. Boards on ceilings should be installed with the long edges vertically with the joints between boards neatly butted to allow finishing. The board fixings should be at a maximum of 300mm centres; board edges should always be fully supported with additional noggins being inserted as necessary to provide support.
Any cables or services must be installed within some form of conduit to ensure that they do not come into direct contact with the insulation, and the insulation should not be notched out to accommodate any of these services within the insulation, as this could be detrimental to the thermal performance.
Mechanical fixings (9 per board minimum) should always be used to secure the boards. These fixings should provide a minimum of 25mm embedment into the substrate and must be driven below the surface of the board to allow finishing. Fixings should be a minimum of 10mm from any edge.
There should be a 5-10mm tolerance between the junction of both the ceiling & floor joints, which should be filled with a suitable flexible sealant prior to final finishes.
Boards can be cut using a Plasterboard Saw or sharp Utility Knife or power tool if being employed by a competent person. Holes for sockets etc. should be cut out prior to the installation of the board to the wall or roof that is being dry lined.
Where there is a requirement for the fixing of heavy items; these must be secured directly onto a framework that is installed behind the laminate board securely fixed to the substrate to ensure adequate support.
When the boards are to be secured to the underside of a roof, they should be installed horizontal at 90 degrees to the rafters, with noggins installed as necessary to support the ends of the boards.
Any decoration should be undertaken after the jointing or skim finishing has been undertaken in a timely fashion.
Trust in the Tekwarm PIR Pitched Roof Insulation Handy Board for a convenient, high-performing solution that provides excellent thermal performance and a finished look. Choose Tekwarm and the BMD Group for superior insulation products.
