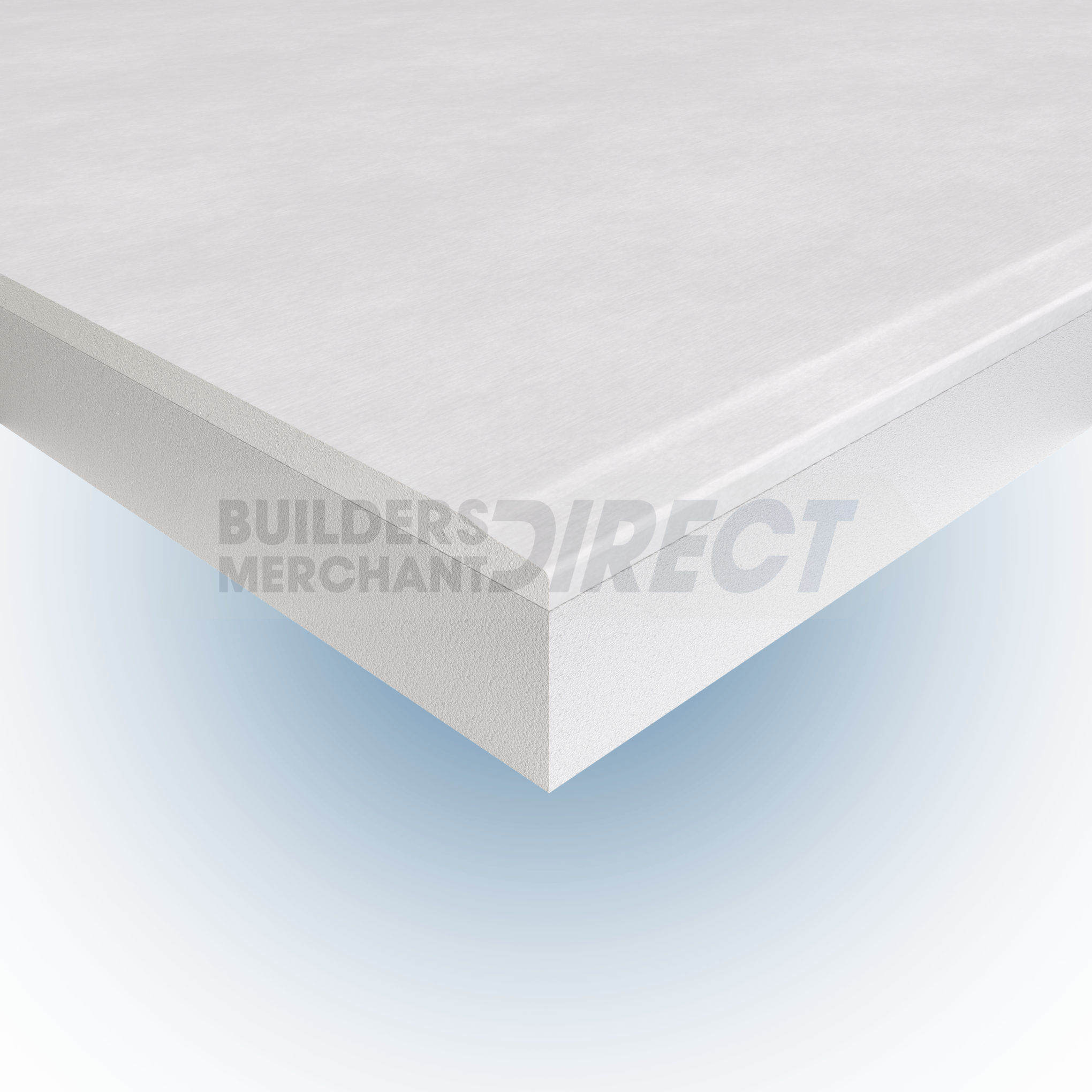

Tekwarm Thermal Basic Insulated Plasterboard 2400 x 1200mm
Manuals & Info Sheets
A high-performance solution that combines plasterboard with insulation to provide a convenient 2-in-1 product for your thermal needs. The Tekwarm Thermal Basic Insulated Plasterboard serves as an excellent choice for both timber stud walls and solid walls, making it a versatile addition to your construction or renovation project.
The Tekwarm Thermal Basic Board comes in various thicknesses to cater to different insulation needs. You can choose from the available options of 22.5mm upto 60mm thickness, offering a wide range of R-values to achieve your desired level of insulation.
Thickness and R Value:
22.5mm - 0.40 (M2k/w)
30mm - 0.58 (M2k/w)
40mm - 0.85 (M2k/w)
50mm - 1.37 (M2k/w)
Tekwarm's Insulated Plasterboards is designed to significantly reduce heat loss, improving the overall energy efficiency of your building. It works by providing a barrier that reduces the flow of heat, allowing the internal environment to maintain a comfortable temperature with less reliance on heating or cooling systems. This can result in substantial energy savings over the life of the building.

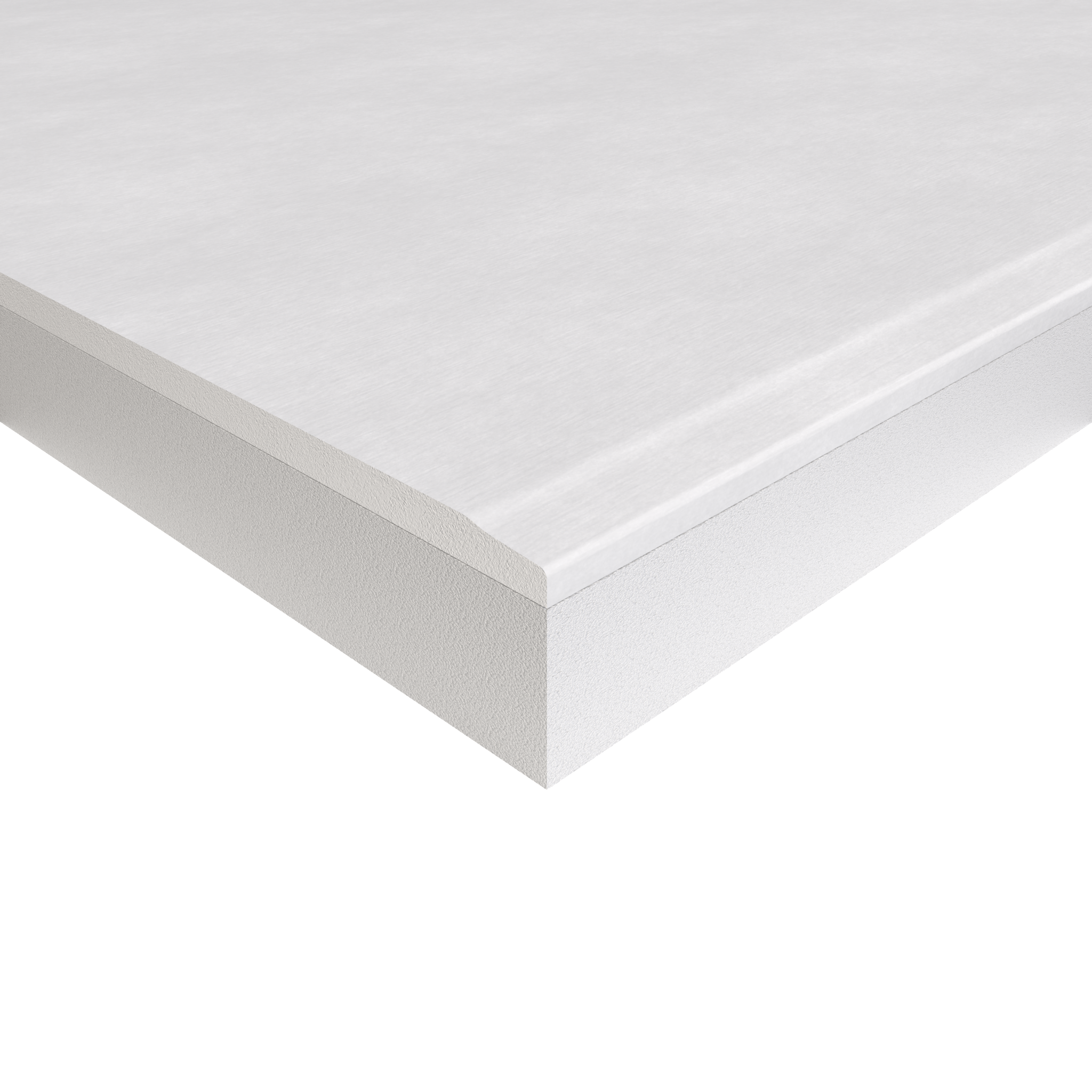

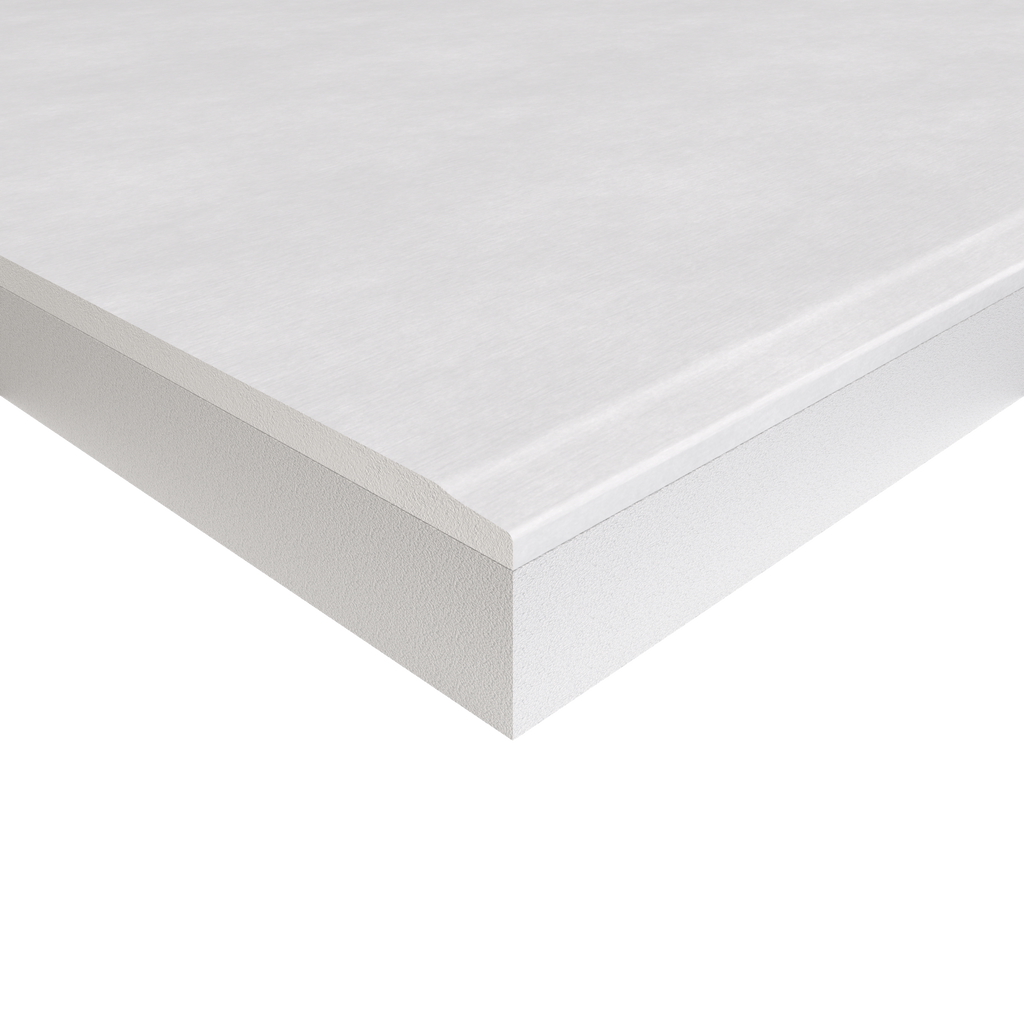

The insulation is bonded to the plasterboard, ensuring thermal performance and eliminating cold spots that can occur with separate insulation and wallboard installations. The Tekwarm Thermal Basic Board not only maintains a warm, comfortable environment but also helps to prevent condensation and mould growth by reducing temperature fluctuations and thermal bridging.

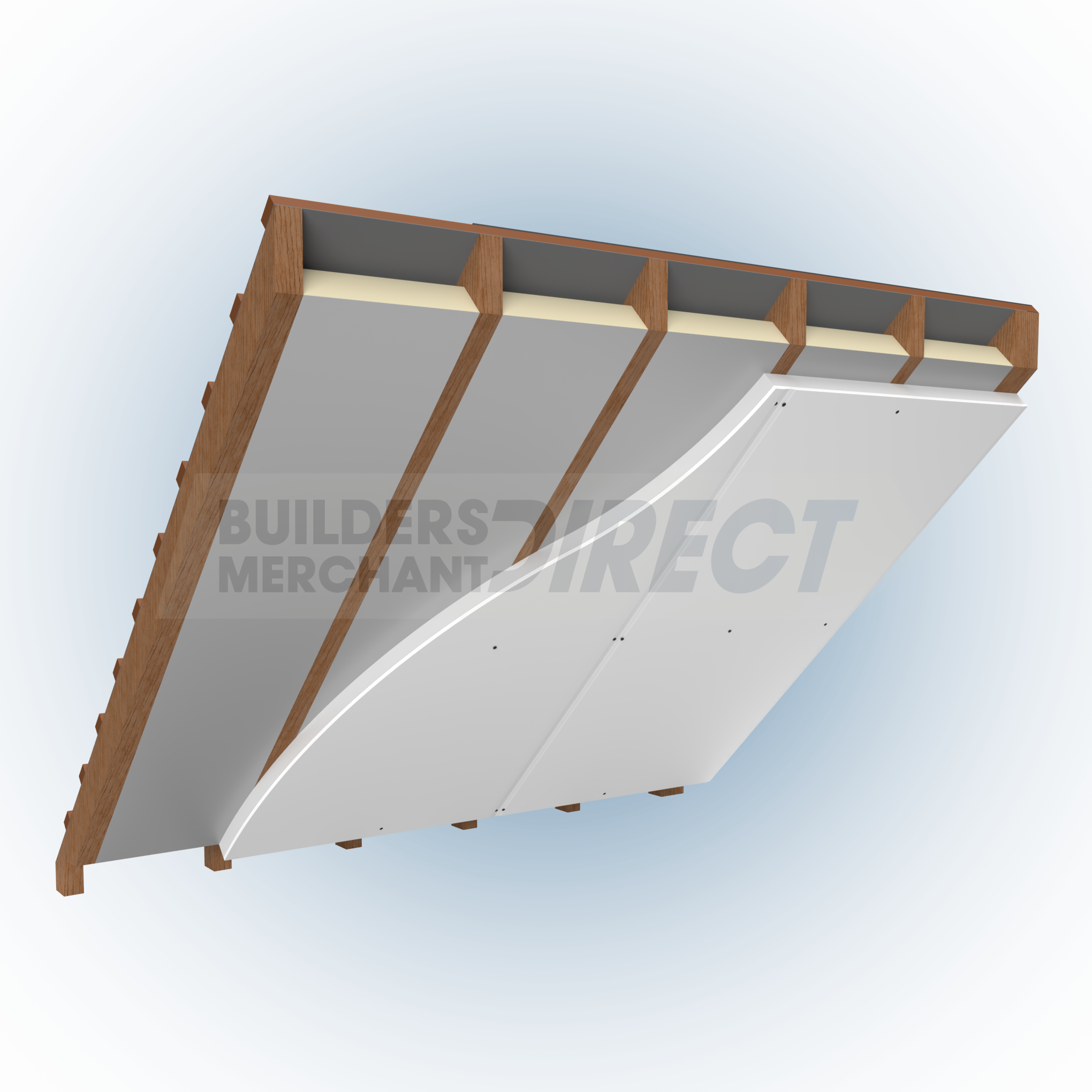

On Timber Stud Walls:
The Tekwarm Thermal Basic Board can be easily installed on timber stud walls. Simply apply the boards to the studwork using drywall screws, ensuring the insulated side faces to the wall. The boards can be cut to size to fit around any wall fixtures or fittings.

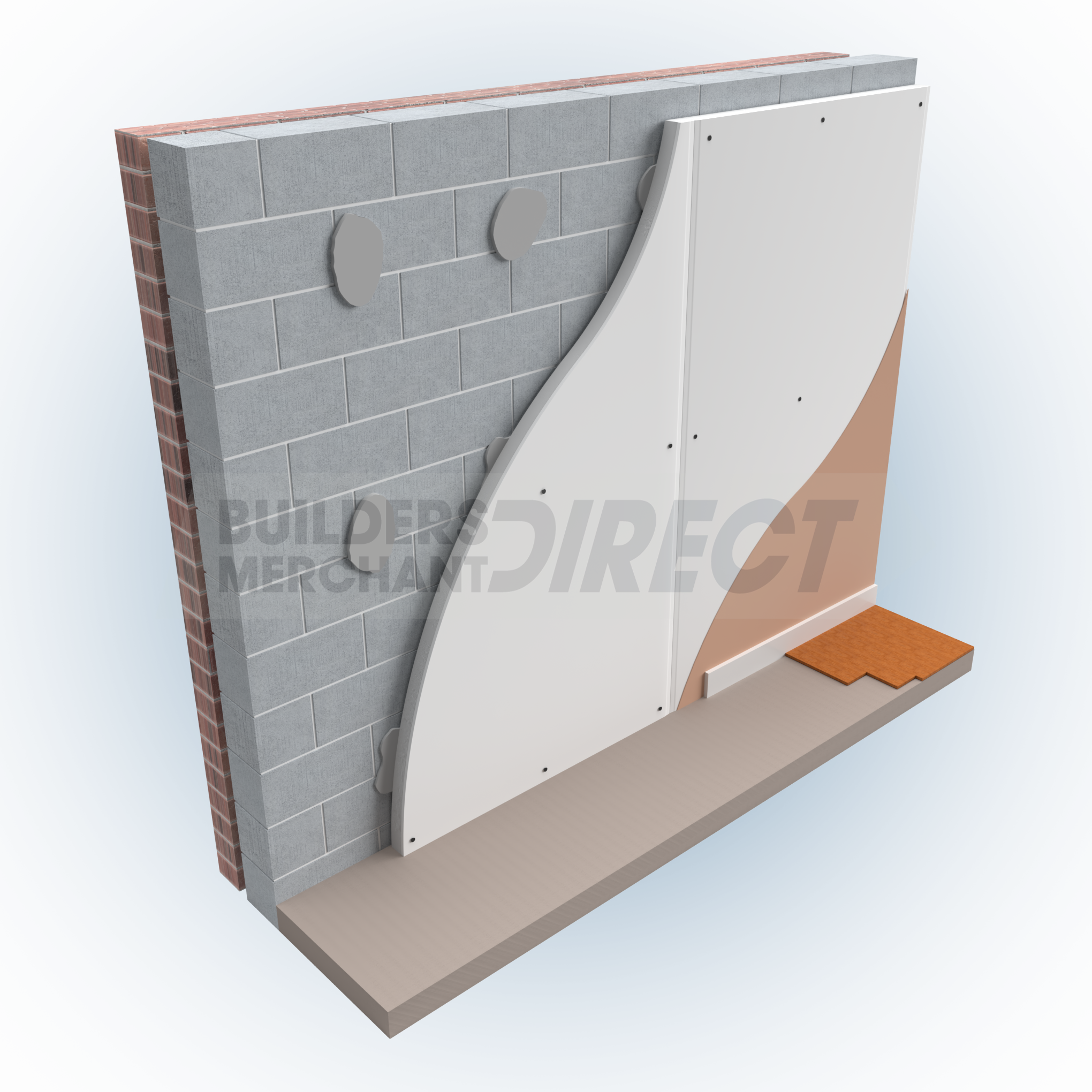

On Solid Walls:
For solid walls, the Tekwarm Thermal Basic Board can be fitted using adhesive dabs or mechanically fixed with suitable plugs and screws. Care should be taken to ensure that the wall surface is clean, dry, and free of dust before the boards are applied.
The Tekwarm Thermal Basic Board is a versatile and energy-efficient solution that can help enhance the comfort and value of your building project whilst also lowering heating bills. This cost-effective thermal plasterboard gives walls a warm and welcoming surface.
